Description
Key Features:
- Complete chassis made from ultra-lightweight aircraft-grade aluminium
- All-round suspension giving exceptional comfort
- Designed for lifting in and out of the car boot with ease
- Very light lithium battery pack available in three sizes
- Easy to take apart and reassemble in seconds
- Shallow floor plate offers great leg room even for the taller user
- Off-board via battery box allows you to keep the scooter in house and charge the battery pack in doors
- Easy grip delta handlebar gives you full control when manoeuvring
- Comfortable and spacious deep foam covered seat

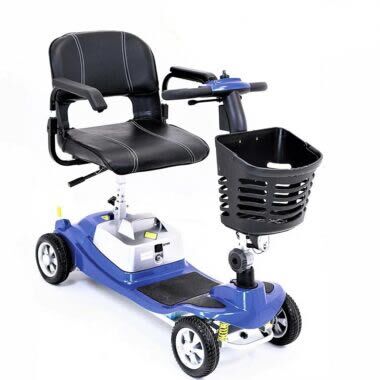

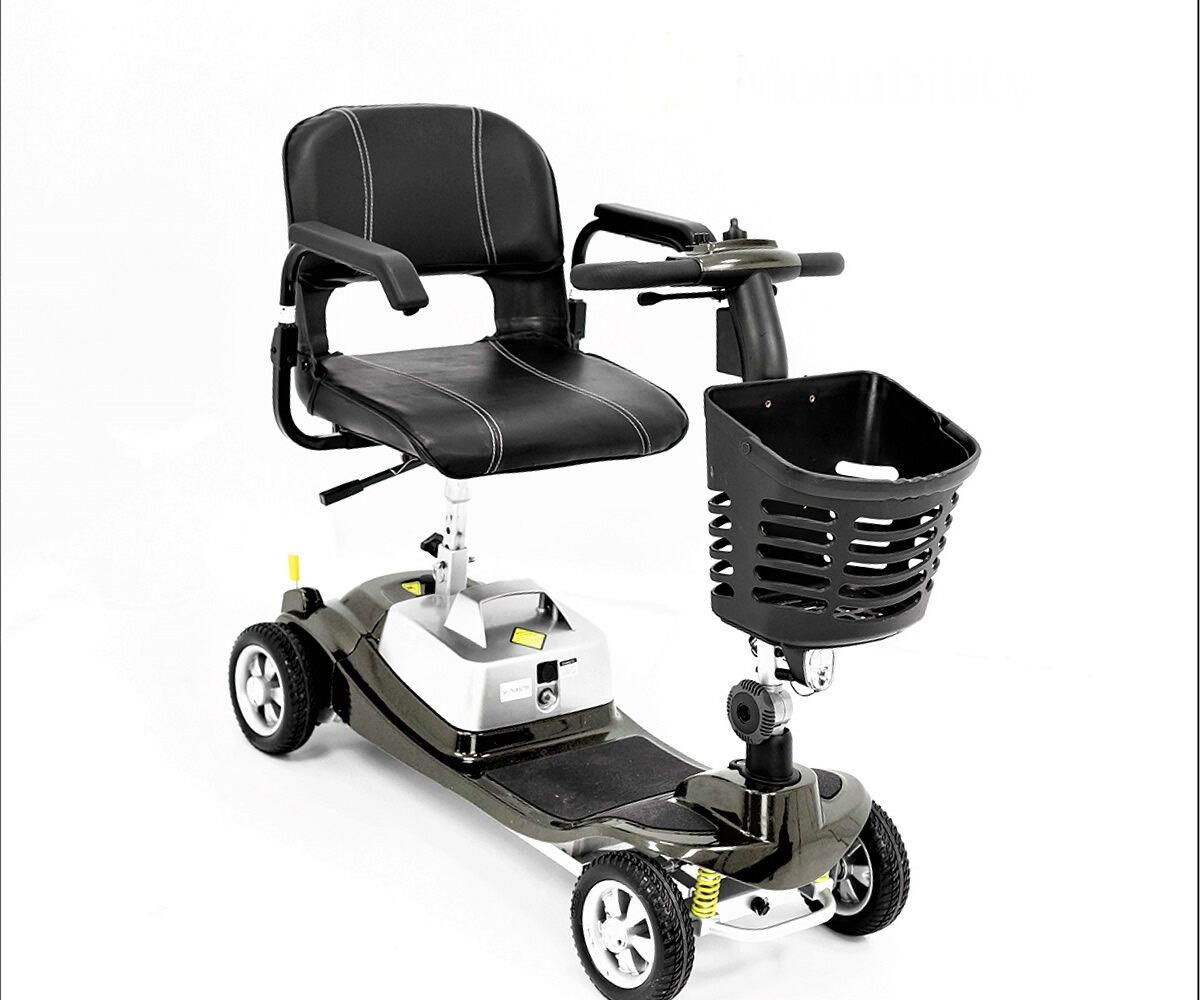

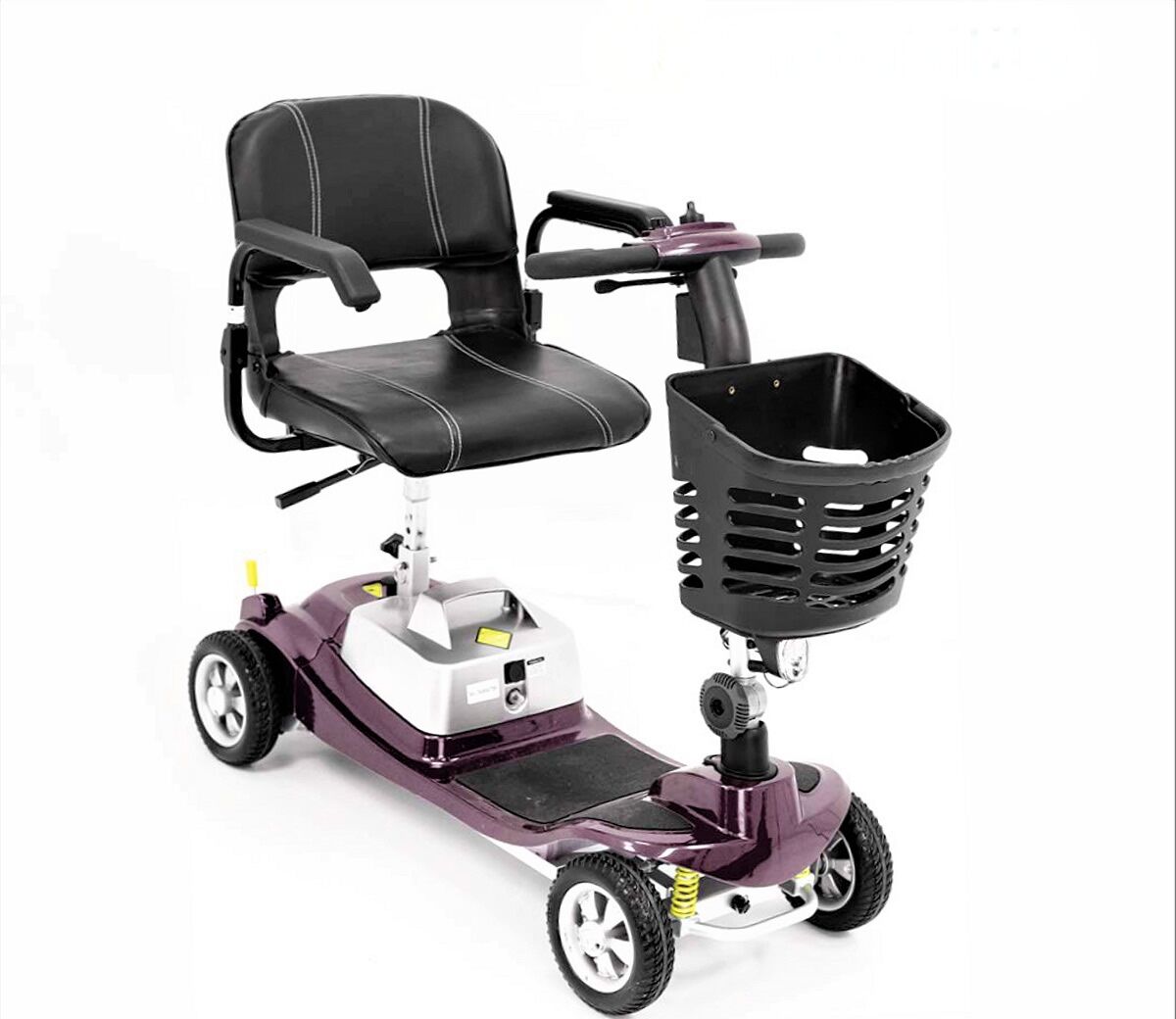

- Great range of colour options for next day delivery
Description:

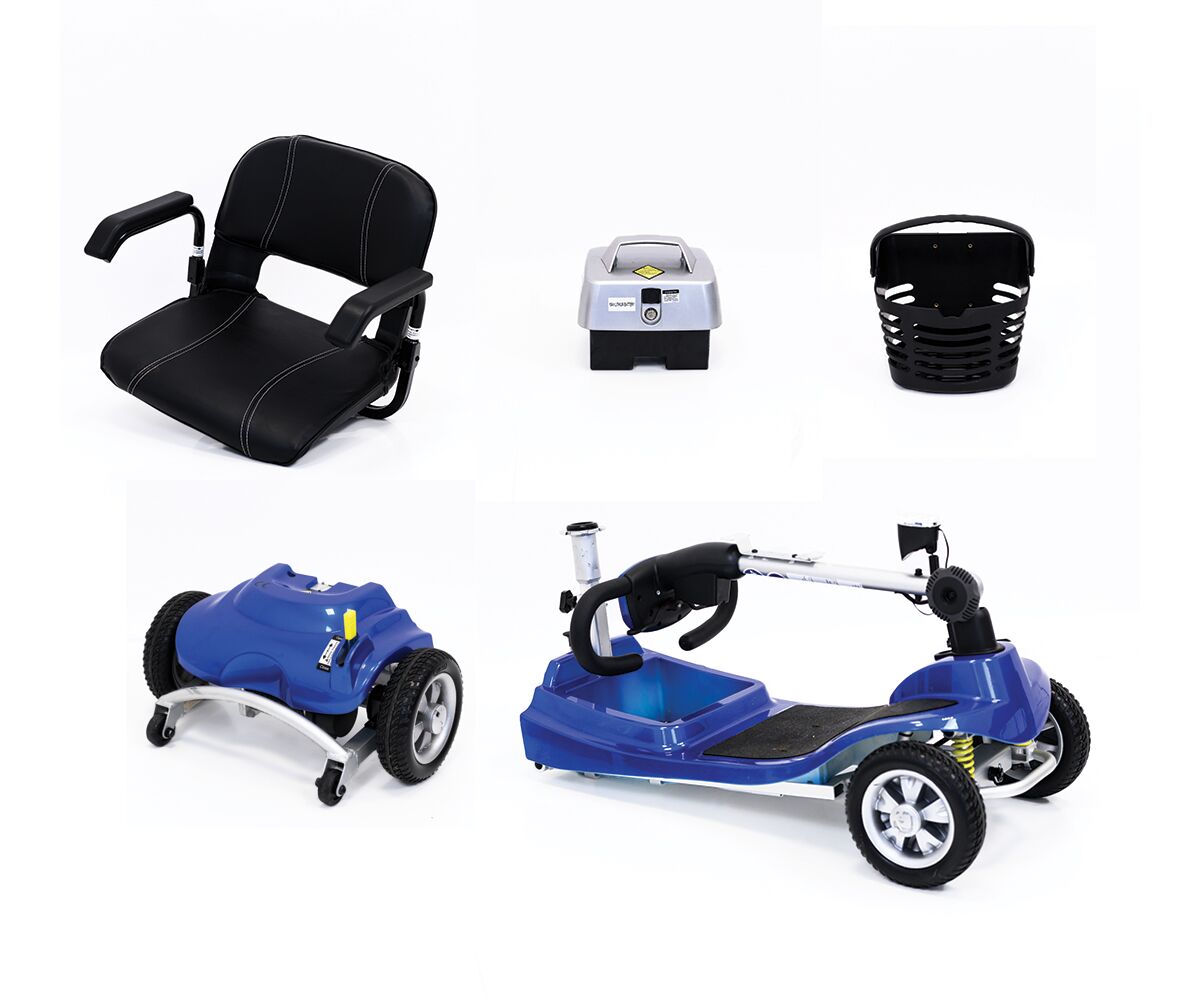

The Illusion is a revolutionary lightweight but strong scooter which can be disassembled into parts for easy lifting, the heaviest part weighing less than 10kg (similar to a bag of shopping) The complete chassis is manufactured from ultra-lightweight aircraft-grade aluminium for optimum durability ensuring top quality. Taking around 30 seconds to reassemble it ensures you won’t be wasting any of your valuable time. It also features an ultra-lightweight lithium battery that is both accessible and simple to remove so you can easily move it to a preferred charging location. A second charging port is located in the tiller which allows for easy access when disassembling is not needed. The scooter also has a powerful LED light for lower light driving conditions. The tiller is height adjustable and the shallow floor plate helps provide exceptional legroom even for the taller users. Furthermore, Illusion is also available with three Lithium sizes, a standard, an endurance and epic battery pack allowing you to double or triple your travel distance for those longer journeys. Not only super light, the unique shrouding is of contemporary design. The advanced engineered full front and rear suspension complete with the comfortable and spacious deep foam covered seat gives a fantastically enjoyable driving experience. Together with the secure-grip delta handlebar, which gives you full control over manoeuvring the scooter, it is incredibly easy to use.
Specifications:
| Model | Illusion | Illusion Endurance | Illusion Epic |
| Speed (max) | 4mph | 4mph | 4mph |
| Battery Type | Lithium | Lithium | Lithium |
| Battery Size | 10Ah 240Wh Lithium | 21Ah 504Wh Lithium | 34Ah 816Wh Lithium |
| Battery Weight | 3 kg | 4.5 kg | 6 kg |
| User weight (Max) | 18 st. (115 kg) | 18 st. (115 kg) | 18 st. (115 kg) |
| Heaviest part when disassembled | 9.9kg | 9.9kg | 9.9kg |
| Total Weight (without batteries, arms or basket) | 25.5 kg | 25.5 kg | 25.5 kg |
| Total Weight (without batteries) | 28 kg | 28 kg | 28 kg |
| Total Weight (with standard batteries, without arms or basket) | 25.5 kg | 25.5 kg | 25.5 kg |
| Total Weight (with standard batteries) | 31 kg | 31 kg | 31 kg |
| Overall Length | 1035 mm (41 in.) | 1035 mm (41 in.) | 1035 mm (41 in.) |
| Overall Width | 490 mm (19 in.) | 490 mm (19 in.) | 490 mm (19 in.) |
| Overall Height | 920 mm (36 in.) | 920 mm (36 in.) | 920 mm (36 in.) |
| Folded Height (tiller down/seat off) | 450 mm (18 in.) | 450 mm (18 in.) | 450 mm (18 in.) |
| Tyres | 194 mm (7.5 in.) | 194 mm (7.5 in.) | 194 mm (7.5 in.) |
| Tyre Type | Puncture Proof | Puncture Proof | Puncture Proof |
| Suspension | Adjustable Front & Rear | Adjustable Front & Rear | Adjustable Front & Rear |
| Lights | Front LED | Front LED | Front LED |
| Charger | 2 Amp Lithium | 2 Amp Lithium | 2 Amp Lithium |
| Charging Type | Off-board via Battery Box/Tiller Charger | Off-board via Battery Box/Tiller Charger | Off-board via Battery Box/Tiller Charger |
| Climbing Gradient (Max) | 8° | 8° | 8° |
| Ground Clearance (Mid Frame) | 55 mm (2 in.) | 55 mm (2 in.) | 55 mm (2 in.) |
| Turning Radius (Min) | 1370 mm (54 in.) | 1370 mm (54 in.) | 1370 mm (54 in.) |
| Seat | Deluxe Adjustable | Deluxe Adjustable | Deluxe Adjustable |
| Seat Width | 460 mm (18 in.) | 460 mm (18 in.) | 460 mm (18 in.) |
| Seat Height | 400-480 mm | 400-480 mm | 400-480 mm |
| Wheel Colour | Silver | Silver | Silver |
| Basket | Black Plastic | Black Plastic | Black Plastic |
| Tiller Lock | Yes | Yes | Yes |
| Tiller Type | Delta | Delta | Delta |
| Brake | Electric | Electric | Electric |
| Frame Type | Detachable | Detachable | Detachable |
| Warranty | 12 months | 12 months | 12 months |
| Controller | PG S-Drive 45 Amp | PG S-Drive 45 Amp | PG S-Drive 45 Amp |
| Motor | 120W | 120W | 120W |
| Overall Box Size | 500Hx520Wx1060L | 500Hx520Wx1060L | 500Hx520Wx1060L |
